RG500Q-GT 5G IOT Modules for Industrial IoT Muz 5G Sub-6GHz LGA Module RG50xQ Series

Model Number : RG502Q-EU

Place of Origin : China

Brand Name : QT

Chipset : RG502Q-EU, RG502Q-EU

Application : IOT M2M networks

Aplication : M2M

Dimensions : 41mm * 44mm *2.75mm

Type : 5G

Package : LGA

Weight : 11.0 g

Warranty : 12 months

Operating Temperature : -30 °C to +75 °C

shipment : DHL/UPS/Fedex

Condition : Original 100%

Price : $199.00 - $216.00/pieces

Contact Now

Products Description

RG500Q-GT 5G IOT Modules for Industrial IoT Muz 5G Sub-6GHz LGA Module RG50xQ Series

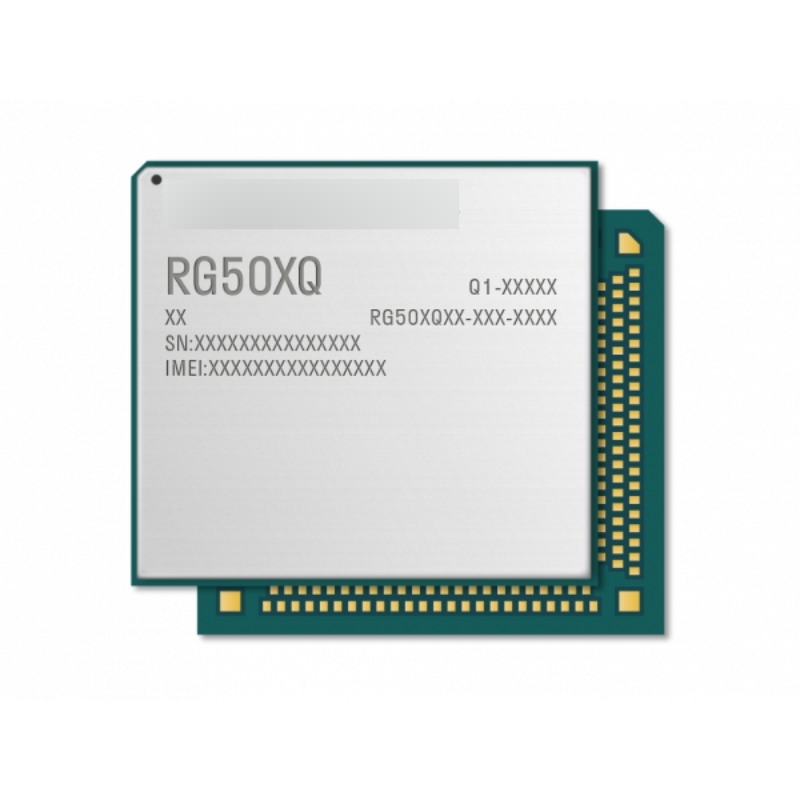

The RG50xQ is a series of sub-6GHz LGA 5G IoT modules measuring 41.0mm × 44.0mm × 2.75mm which meets the 3GPP Release 15 specification and is optimized for industrial and commercial IoT applications. It supports both standalone (SA) and non-standalone (NSA) modes, as well as Option 3x, 3a and Option 2 network architecture, is backward-compatible with 4G and 3G networks including LTE Cat 20, and delivers maximum downlink rates of 2.5Gbps and maximum uplink rates of 900Mbps. The series consists of four variants to meet varied geographical requirements, which can be compared via the table above.

The RG50xQ supports location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the
integrated GNSS receiver greatly simplifies product design and makes positioning capabilities quicker and more accurate. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux and Android) allow the RG50xQ to serve a wide range of IoT applications including business routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs and digital signage

Key Features

* Supports both NSA and SA modes
* Supports Option 3x, 3a and Option 2 network architecture
* Supports location technology Gen9C Lite
* Supports MIMO
* USB 3.1 / PCIe 3.0 high speed interface
* Quectel Enhanced AT Commands
* Multi-constellation GNSS receiver available
* Feature refinements: DFOTA and VoLTE (optional)

Model Name			RG502Q-EU
Type			5G modules
Dimensions			41.0 × 44.0 × 2.75mm
Form Factor(Package)			LGA
Frequency Bands 5G
	Frequency Bands	5G NR NSA	n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/
	Frequency Bands	5G NR SA	n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
		DL 4 × 4 MIMO	n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
LTE	LTE Category	LTE Cat 20
		LTE-FDD	B1/B3/B5/B7/B8/B20/B28/B32
		LTE-TDD	B38/B40/B41/B42/B43
		LAA	_
		MIMO	DL: 4 × 4 UL②: 2 × 2
WCDMA		WCDMA	B1/B5/B8
GNSS			GPS/GLONASS/BDS/Galileo/QZSS (Optional)
Operation temperature			-30 °C to +75 °C
Region			EMEA, APAC, Australia ,Brazil
